Bosch is one of the famous industrial enterprises in Germany. It devotes to auto- intelligence traffic technique, industrial technique, combustion goods, and technology of energy and architecture.
Based in Stuttgart, a city in the Northern part of Germany, Bosch is a company that contains over 230 thousand employees in more than 50 different countries. Its innovative and sophisticated product and system solutions make it well-known globally.
GREFEE has been the supplier of Bosch’s bi-color injection mold of electronic tools since 2015 and was highly affirmed by the headquarter of Bosch, so GREFEE successfully being the supplier member of Bosch. In 2016, Bosch officially contracted with GREFEE for die casting service, from the die casting of a single part initially to mass production of die casting projects with complex and high requirements.
Now we gonna present the main die casting part of the automotive steering system that GREFEE produced for Bosch in 2021. This article gonna further to let you know about the steering products and the proficiency of GREFEE in the die casting area.
Characteristics of Project

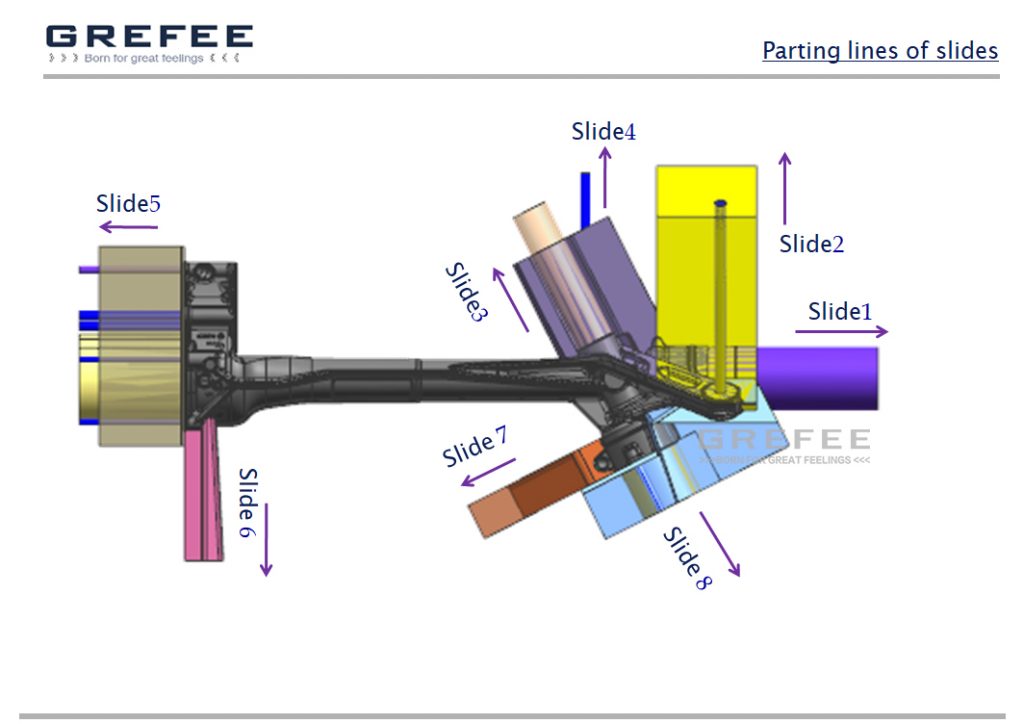

1.Products have complex parting surfaces, so the strength of mold needs to be higher enough. Besides, it has slides with more than 10 angles, and the core pulling distance is long on both sides.
2.The appearance of products needs to be bright and compact. No blowhole shrinkage is allowed on the machining surface. No defects such as cold claps, cracks, or shrinkages are on the outer surface of products.
3. The wall thickness is thick and uneven, so the shrinkage of the product and interior air holes inside the product need to be paid much attention.
4. It has rigorous demands on dimension accuracy, so a well-designed clapper is needed in CNC machining to reduce the dimensional errors due to multiple clamping.
So GREFEE usually chooses 5-axis CNC machining. It needs to be performed rigorously following a standardized QC guide for the process of die casting, CNC machining, and post-treatment.

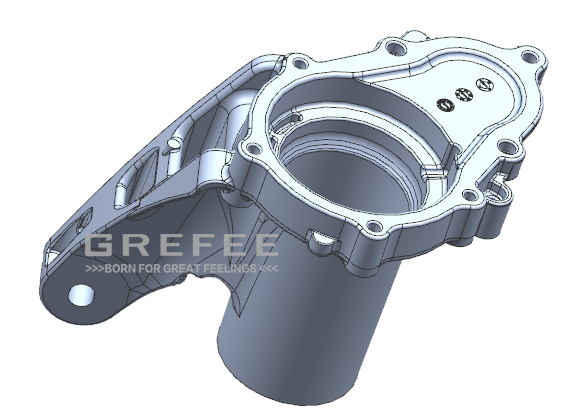

Product name:GEARBOX COVER
| Parts Size: | 196X156X168(mm) | Business Type: | Die casting +CNC machining |
| Material: | A380(Aluminum alloy) | MOQ: | 10 |
| Process: | Aluminum die casting | Place of Origin: | Guangdong,China |
| Post Finish: | Sand blasting | Shipping Method: | By Express |
| Color: | Nature | File Format: | STP;IGS |
| Tolerance: | +/-0.05mm | Brand: | Bosch |
| Order QTY: | 8350PCS | Customer: | Germany |
| Lead-Time: | 16 Calendar Days |

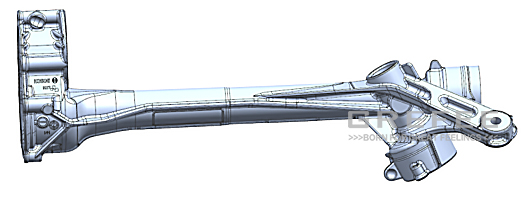

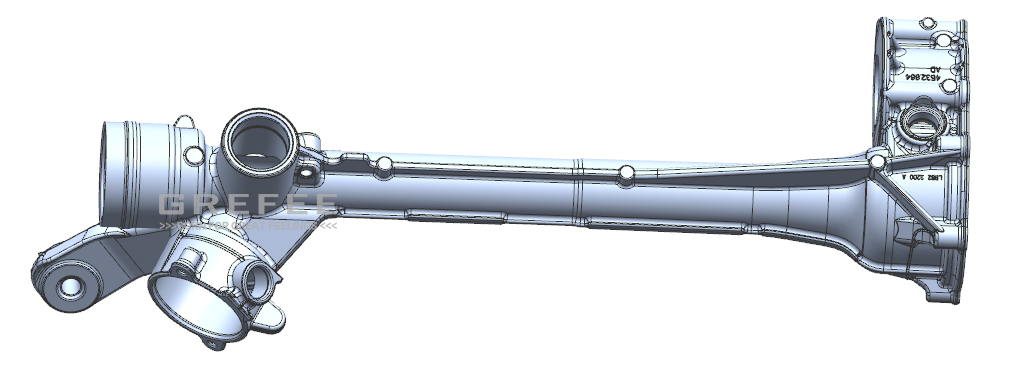

Product name:Housing
| Parts Size: | 572X215X180(mm) | Business Type: | Die casting +CNC machining |
| Material: | A380(Aluminum alloy) | MOQ: | 10 |
| Process: | Aluminum die casting | Place of Origin: | Guangdong,China |
| Post Finish: | Sand blasting | Shipping Method: | By Express |
| Color: | Nature | File Format: | STP;IGS |
| Tolerance: | +/-0.05mm | Brand: | Bosch |
| Order QTY: | 8350PCS | Customer: | Germany |
| Lead-Time: | 28 Calendar Days |
Knowledge about Automotive Steering Technique
As a part of the automotive chassis system, the steering system determines the active safety of vehicles. The automotive steering system has two types, mechanical steering system (MS) and power steering system (PS). The latter relies on the power to control the steering system and then switches from a hydraulic power system to an electric hydraulic power steering system (EHPS) and Electronic power steering system.
So far, the most advanced and cutting edged steering technology is steer-by-wire. It is manipulated by a computer on the vehicle that can simulate the feedback from roads or cut off the feedback from roads completely. For the driving mode steering vehicle, it is a helpful technology, except for the improvements of the driving experience. More importantly, it is also critical for future automatic driving.

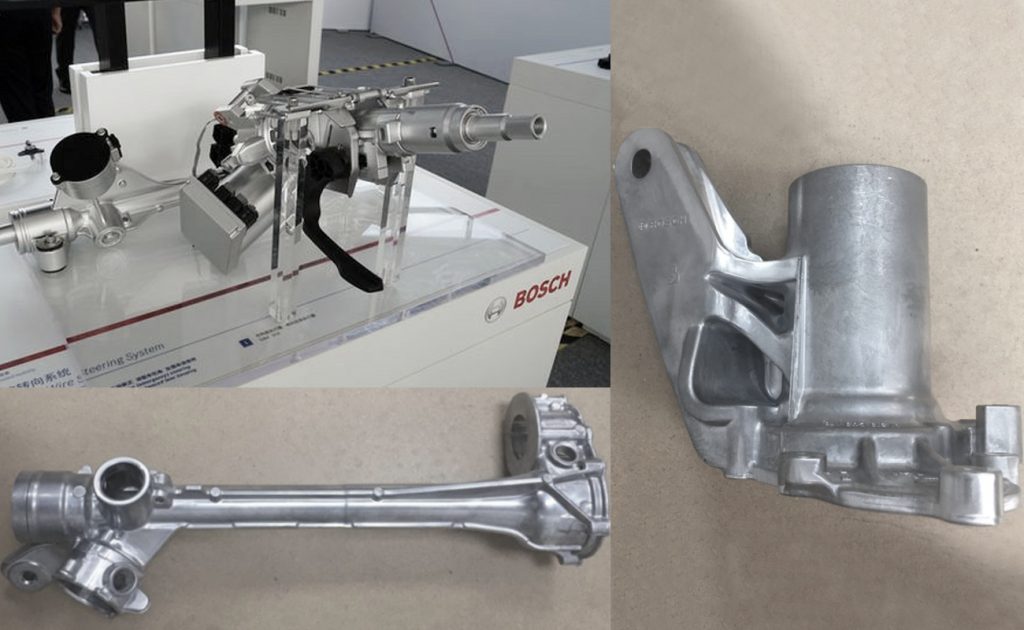

At Bosch technology day in October 2021, Bosch showed the steering system equipped with a steer-by-wire steering system. It was a great honor that this product was the work of GREFEE. GREFEE can provide the most advanced steering products for Bosch, and GREFEE feels honored that we can win the trust of Bosch.

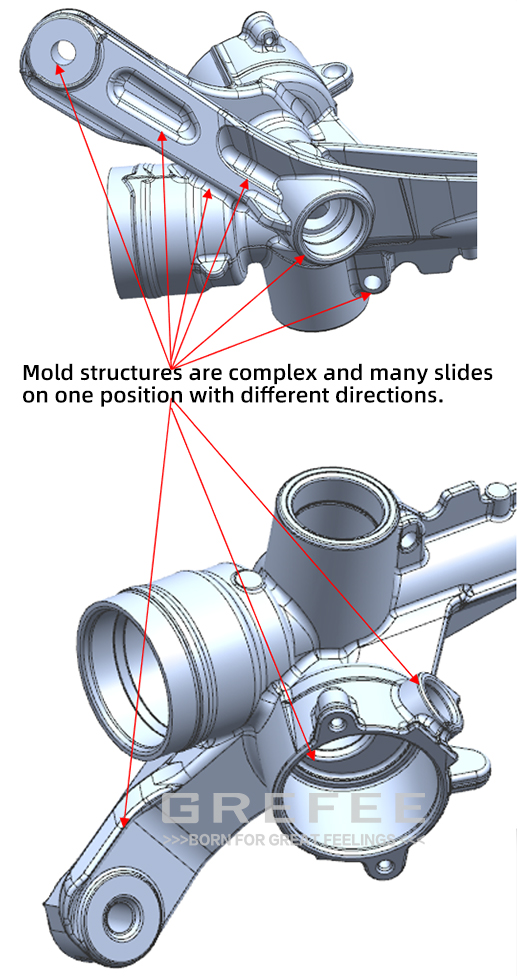

Due to uneven wall thickness, complex structures and lots of slides, so the quality of design of parting and runners are the key to the quality guarantee of final products.

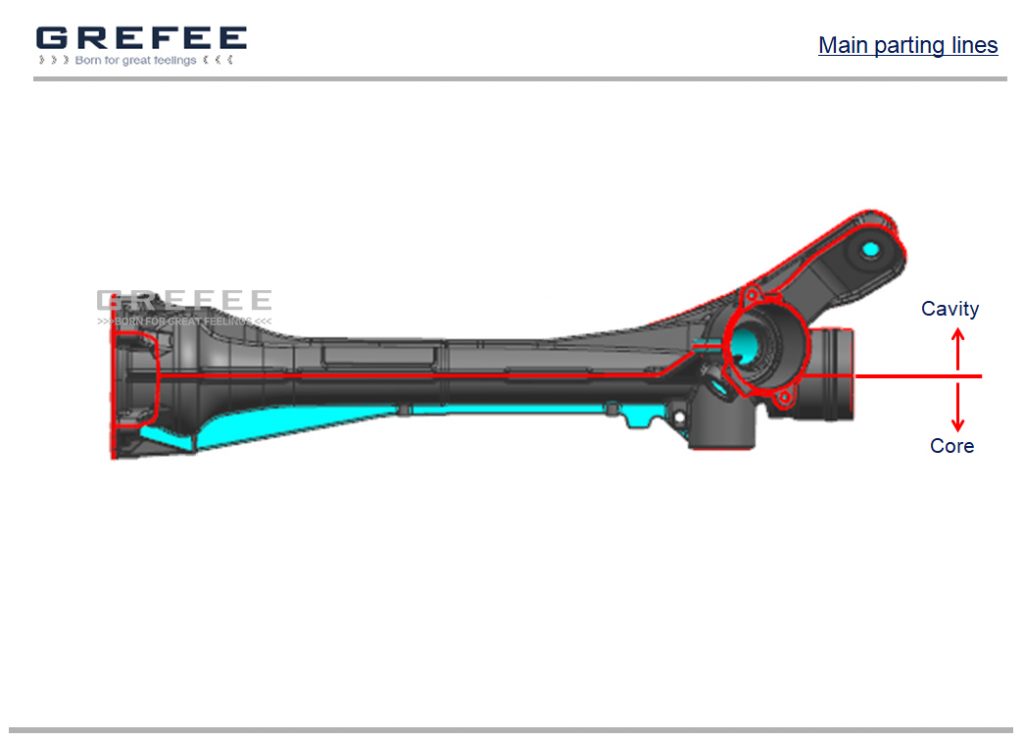

PL Surface Design
It is best to pass through the largest section of castings when choosing the parting surface and leave the casting behind the core. The parts which require a high dimension accuracy should be put in one mold cavity. For the sake of the de-mold and runner distribution, the parting surface of the HOUSING die casing should be the one that passes through the steering axis and is paralleled with the moving direction of the slide.

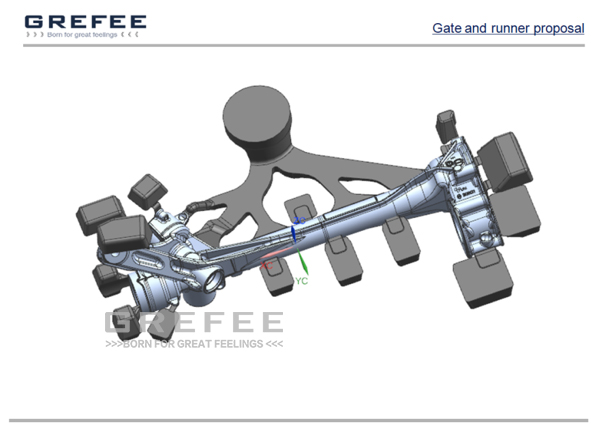

Injection Material Solution

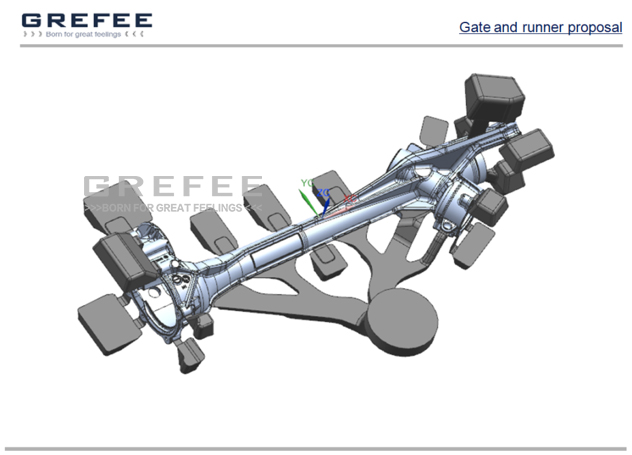

The design of runner should make the molten metal flow direction follows the cavity venting direction to keep the cavity venting system functioning properly. The overflow tank shall be set according to the needs.
The design of runner should take the overall length of product into account, the demand of product compact is high. To assist filling and product feeding, 5 runners needed for the main product. Besides, as the requirement of oblique hole is high, so another single internal sprue should be set for filling and feeding.
The area of runner and calculation of width. Select low filling speeding and time to calculate and ultimately selecting in-gate area which is about 500mm2, and the width of in-gate is 2.5 mm. It needs to set up by the scientific calculation methods combined with years of practical experience.
It also needs to design the overflow and venting on each far end of the final product. It mainly uses the centralized vent and single vent to facilitate the gas inside the mold cavity and cold material of fore-end exhausted throughly when filling as well as ensure the quality ( specific design of runner, venting, and cinder ladle should be analyzed according to mold flows).

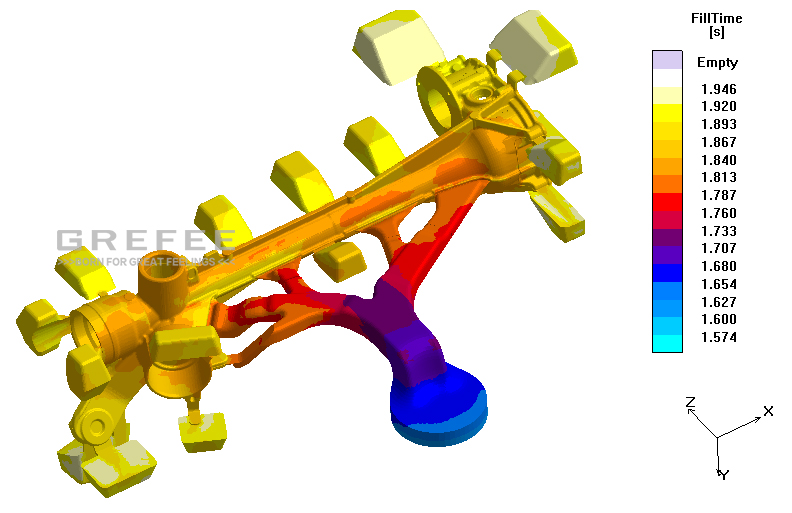

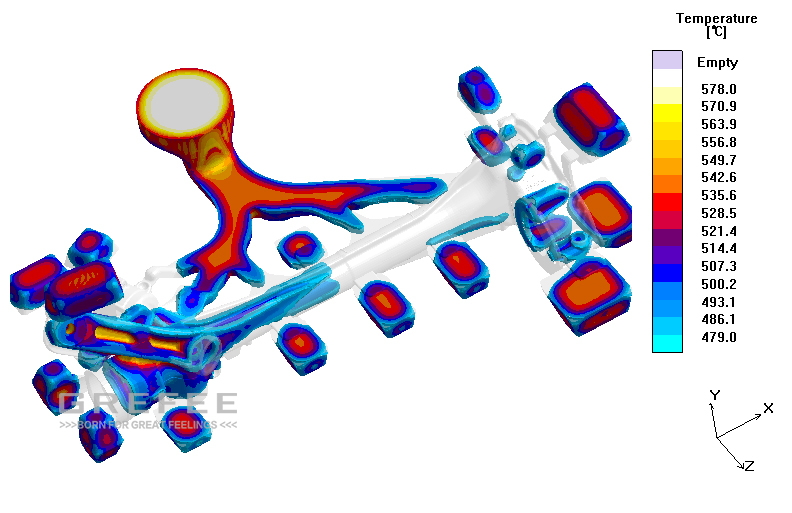

Mold flow analysis
The runner of die casting products, cinder sale, and venting, all of the three points are the essentials and sticking points in the design of die casting molds, so it is necessary to carry out mold flow analysis to parts. usually, we have to do many changes and simulates to find the most rational parameters. Ultimately, the time difference of the material reaching to different positions of the cavity can be minimized and the gas can be eliminated farthest.
Cooling System Design
This product has a thick wall thickness. The heat concentrates, especially the forming position of the slide wraps the aluminum liquid, so the cooling system is critical in this process.
Cooling methods: designs cooling runners in each core pulling, product cavity is evenly distributed with point cold water holes, set wire cooling water channels in runner position, the spreaders and sprue bush use cooling water channel.
During solidification, the left and right parts are complicated, so the process is slow. The top area of the mold should be cooled carefully.

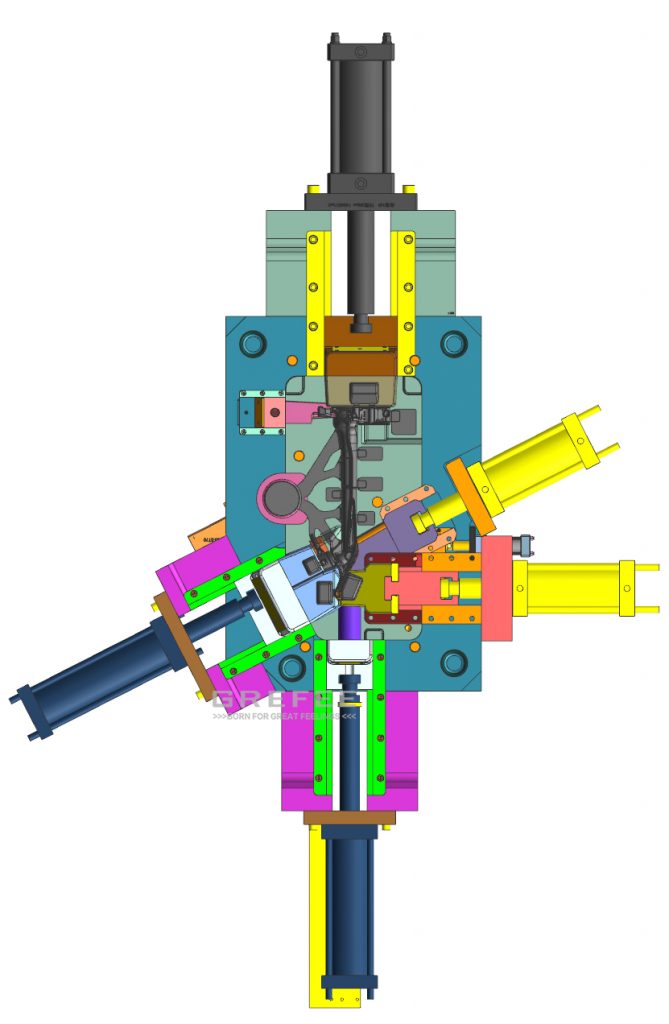

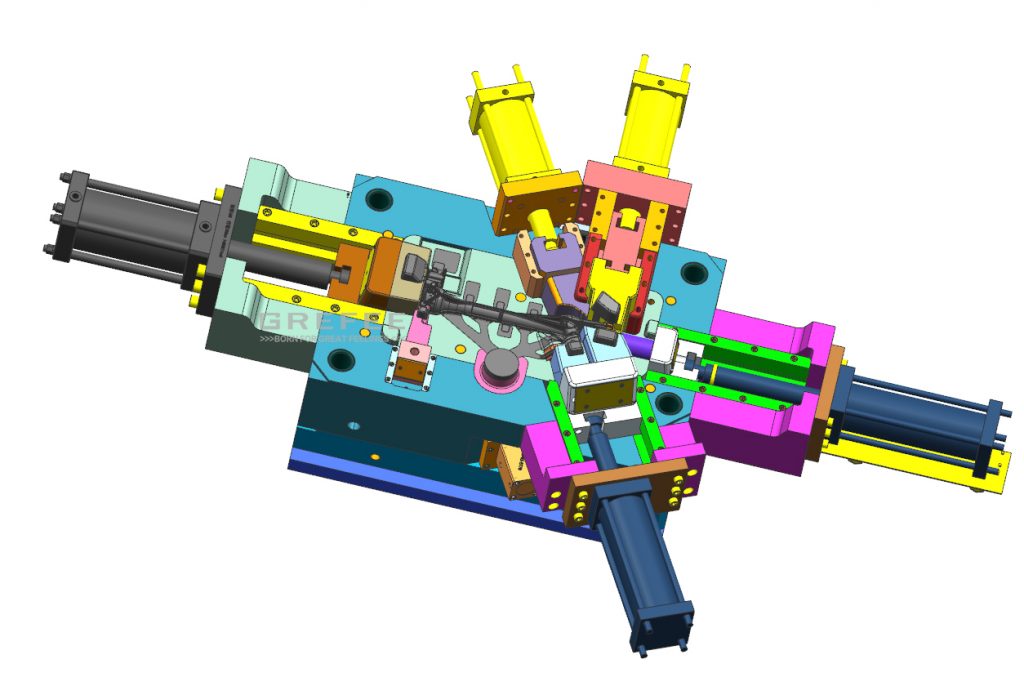

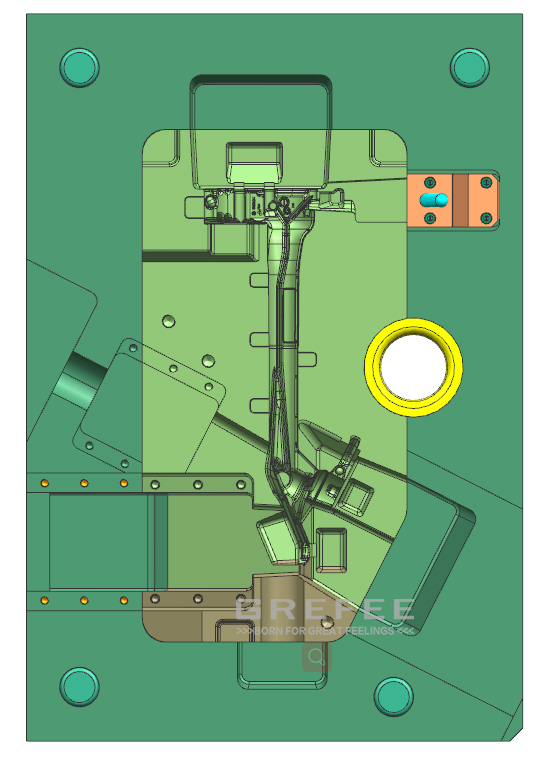

3D Displays of Mold

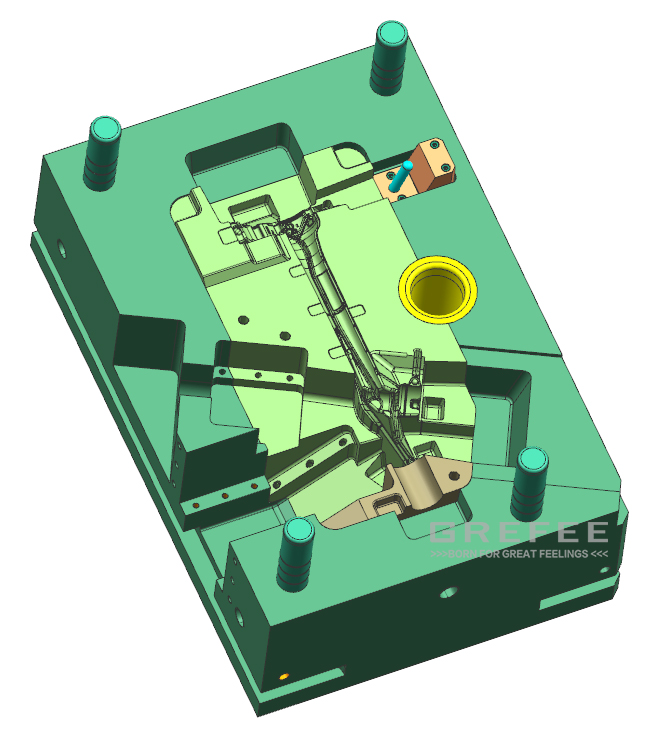

core
cavity

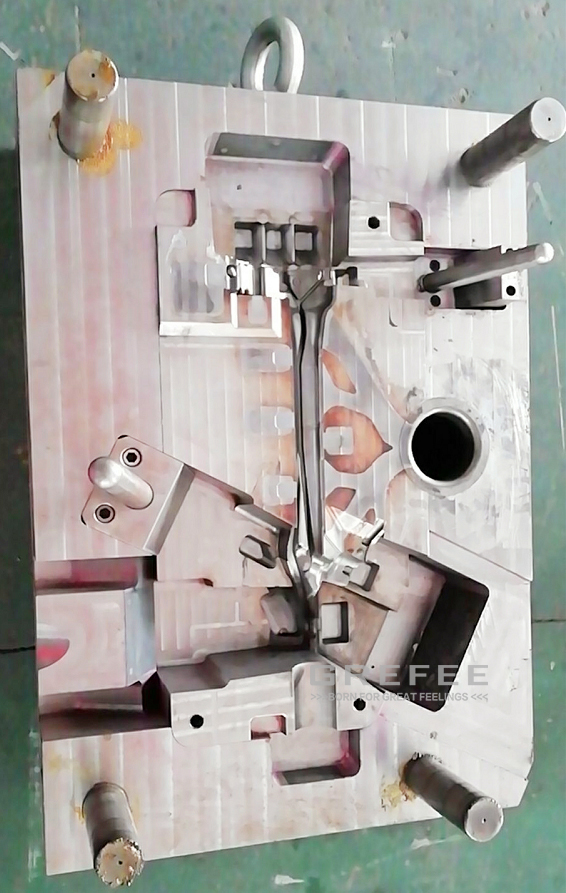

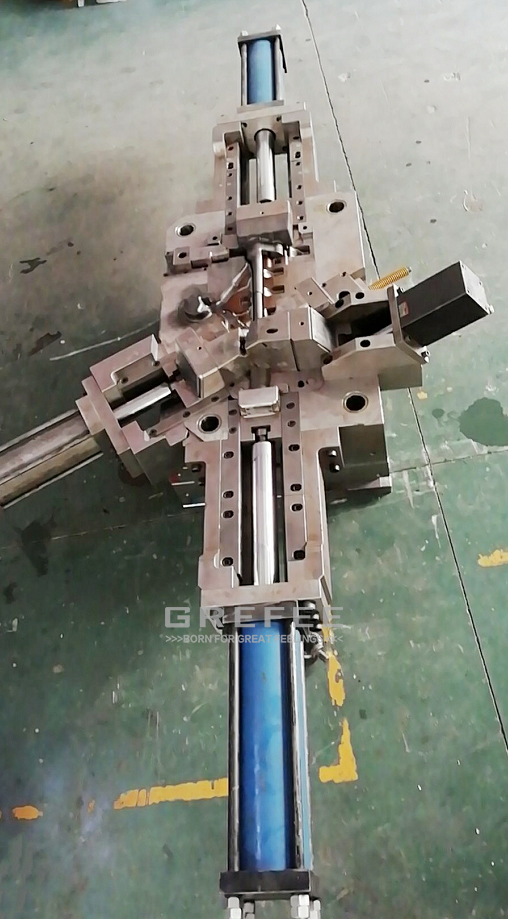

The Mold
Dos and Don’ts for Mold process

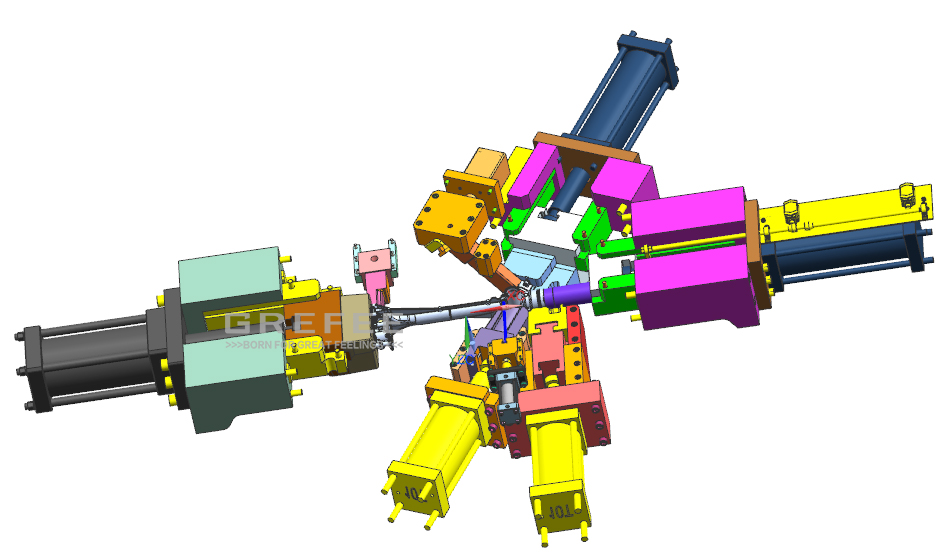

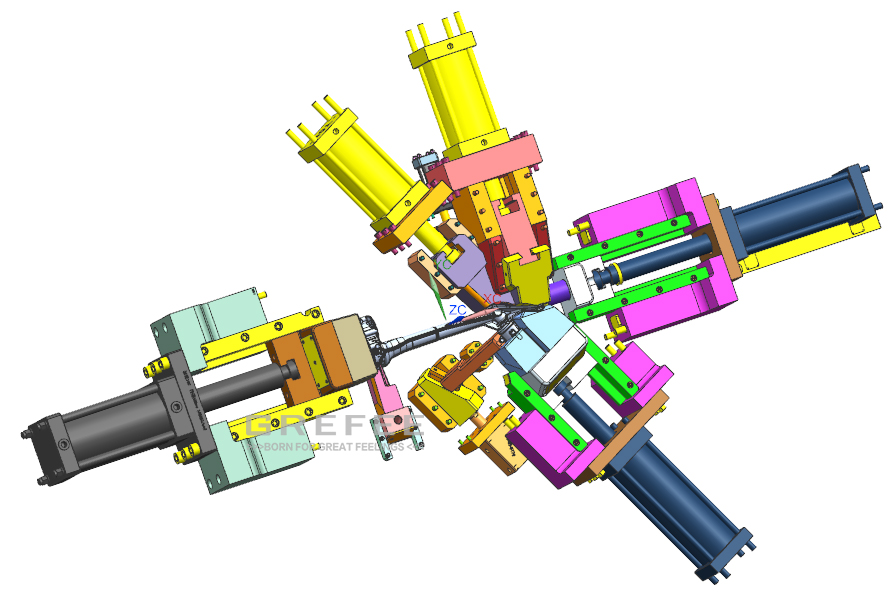

1.long casting part, multiple holes needs core pulling and forced directly. Mold shape 2836X1909X811 （mm）.1250T die casting machine, the core pulling positions of oil cylinder are crossed, stacked. So the long core pulling oil cylinder should be put top and bottom to avoid the interference with die casting machines.
2. Use the core pulling system to achieve the positioning and core pulling action of slide core pulling after the mold clamping. The first thing is to consider the core pulling force and decide the modes of core pulling system. Due to the long slide stroke, it needs to make sure the slide moves smoothly and some slides have the requirements on movement orders, so it overall uses the oil cylinder core pulling structure to ensure it can process properly on the lathes.

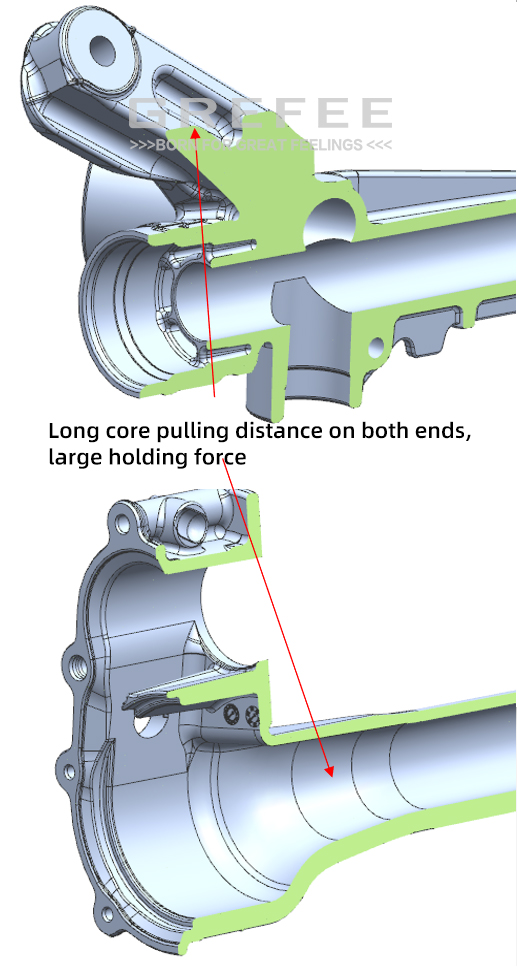

Besides, the core pulling structure is wrapped with aluminum liquid. The holding force should be designed largely due to reasons like hot spot, thick wall thickness and large holding force。 After trial production and have decided the process, the die casting parts can be produced successfully.
3. If it is mass production, then it needs to use imported ASSAB Global 8418 material to make mold core, fitting for the vacuum heating treatment to ensure the mold life and the stability of production. If the processing is large, the fit mold would be complex. It is important to organize a detailed production scheme in advance.
Key Process Control
The production cycle of each Die Casting molding is 74s. The injection amount is 10.23 kg, the filling amount is 6.52kg, component weight is 2.93kg. in the production, the operator must follow the practice guidelines strictly.
Operation Procedures:
(1)Strictly following the handover records. The equipment must be checked and registered before startup.
(2)The operator directs die casting process, following the machine process strictly. Important factors: spray painting material, molten metal liquid temp, die casting mold temp, ejector rod oil brushed, parting surface cleaning ,and cake thickness control.
(3) Prepares the checklist as production requirements and checked one by one to make sure the preparation is done properly, such as coating material, bolts, cooling water, mist blower, soup feeder etc.
(4) Pre-heat the cold mold with natural gas blowtorch to make sure equal temp. After pre-heating, it needs to apply parting agent on the mold surface and gradually increase the die casting machine working pressure.
(5) After the mold temp increased to the standard value, increase the pressure for normal production.
(6) After producing 5-10molds, introducing the cooling water completely.
(7) For local strains and deep cavity position, can apply manual painting and dry the parting surface and cavity. For strained cavity part, can brush little parting agent evenly.
(8) It has to observe the pressure gauge of charging cylinder, pressure boost and quick accumulator nitrogen pressure. Once found abnormals, (pressure drop, no pressure, or insufficient pressure etc), should stop for maintenance immediately and re-start the production after it is normal.
Causes and Prevention of Defets
In production, the professionals must quickly figure out the causes and preventions of the defects on casting.
(1) Roughness: roughness refers to the rough and ragged casting surface, which are surface defects. Such defects result from the damages to casting surface when repairing mold, or the coating is too thick, which peels after a period of production. How to avoid roughness: stop the machine immediately and fix the mold. Practices the spray painting technique rigorously.
(2) Mold repair mark: mold repair marks refer to the attached repairing mark by the operators when the mold sticks to the metal block, which affects the surface of the casting. The reason why is that the operators scratch the non-tensile surface when repairing the mold. Due to corrosion mucus around the gate, the operator scratches the mold in processing. How to avoid it: sandblasting the mold and repairing the mold with sandpaper and grinding tools.
(3) Painting peeling: painting peeling results from the blanking during spray painting. When the mold is eroded, the repairing area is easily generating a painting backlog. Too often repairing mold will lead to mold oxidization and paint peeling. How to avoid it: clean the painting area and supplementary spray painting.
(4) Damages: damages refers to casting damage due to mechanical impact. Impaired phenomenon: it is because of the ineffective protectiveness of the product in the process of shipment or machining. How to avoid it: a certain distance between products and avoid damages is needed due to the percussion between products. When stacking products, a rubber pad needs to be used to isolate each layer of the product. d to isolate each layer of the product.
The machining design and trial production have guaranteed the steering products being manufactured productively. We control the manufacturing process rigorously and have successfully turned the ADC380 steering gear housing production into a reality. So far, the monthly orders are about 8500 pieces which are qualified at one time.
GREFEE has almost 20 years of experience in the automotive die casting industry, especially in automotive steering, gearbox, shock absorber, oil pump housing, rear longeron, automobile battery housing.
Bosch has harsh requirements for its suppliers. While GREFEE is fearless of challenges and is positive about challenges. We are proficient in difficult and complex projects. We are honored to take care of your challenging projects. Contact Us
