Consumer Electronics – CNC Machining Solutions for Photography Series Components

Posted on : October 16th, 2025，By GREFEE

Since its establishment in 2003, GREFEE has been committed to creating high-quality precision products for global customers, with outstanding performance particularly in the field of machining

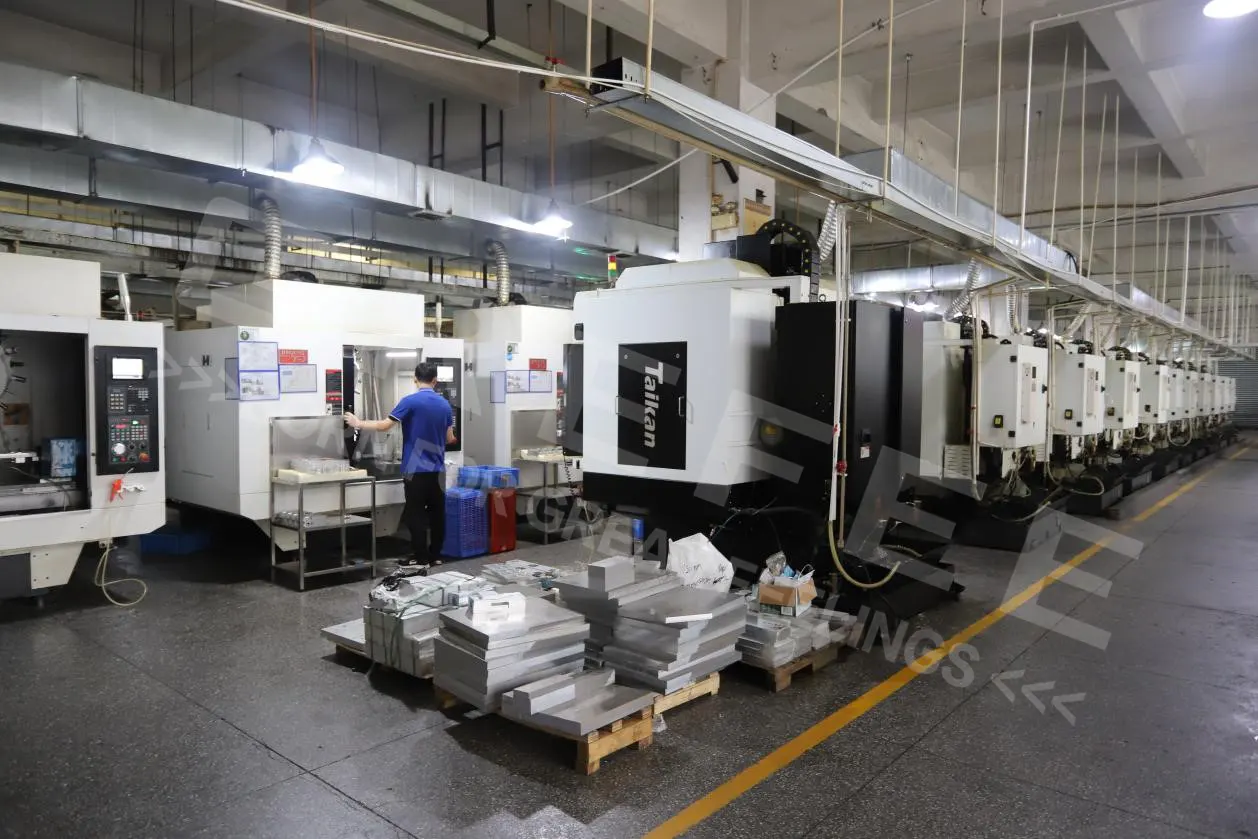

GREFEE’s CNC machining workshop is equipped with over 400 high-precision machining equipments, covering industry-leading brands such as Japan’s Tsugami, DMG MORI, Mazak, Haas, and Fanuc. It also owns more than 30 high-precision turn-mill composite equipments and 4 intelligent assembly production lines. From precision machining and surface treatment of components to finished product assembly, each link can achieve seamless connection and precise control, truly providing a one-stop full-process manufacturing service solution

In the field of photographic equipment, GREFEE has been a global manufacturer of photographic components since its founding. The brands we cooperate with include Japan’s Sony, Canon, Nikon, Italy’s Manfrotto, France’s Gitzo, as well as China’s DJI and Insta360.

As the market’s requirements for the precision, stability, and texture of various photographic equipment continue to increase, the machining of photographic equipment has become an important field in CNC machining technology. Relying on its profound accumulation in the field of CNC technology, GREFEE provides a comprehensive precision manufacturing solution for photography series components, ensuring the provision of high-quality photographic components for global customers.

Our Advantages

Advanced Workshop and Full-Process Operation Capability.

GREFEE is not only equipped with advanced production and machining equipments in the industry but also possesses standardized operation capabilities covering all scenarios. Whether it is the refined machining of a single product or the assembly and bulk packaging delivery for large-volume orders, the workshop always follows standardized processes in every link. From the production source to the delivery of finished products, it comprehensively ensures the stability of product quality, laying a solid foundation for end-users to obtain reliable products.

Proactive Support from Professional Engineering Team​

With a core technical team composed of more than 100 engineers, GREFEE can provide in-depth support throughout the product design stage for customers. In the early stage of the formation of customers’ product concepts, the engineer team takes the initiative to intervene. Combining its rich manufacturing experience, it conducts professional analysis from the dimensions of product structure optimization, material selection adaptation, and machining feasibility, avoiding design blind spots and production risks in advance, helping customers efficiently promote the product R&D process and reduce the cost of subsequent production adjustments.

Strict ISO9001 Quality Management System

GREFEE has established a quality management team consisting of more than 80 professionals and has built a quality management framework in strict accordance with the ISO9001 international quality management system throughout the entire process. The team integrates the quality control concept into the entire production cycle. From the incoming inspection of raw materials, in-process inspection during production to the final inspection of finished products before delivery, each step has clear standards and records. Through a systematic and standardized management model, it ensures that product quality is always in a controllable state, providing customers with stable quality assurance.

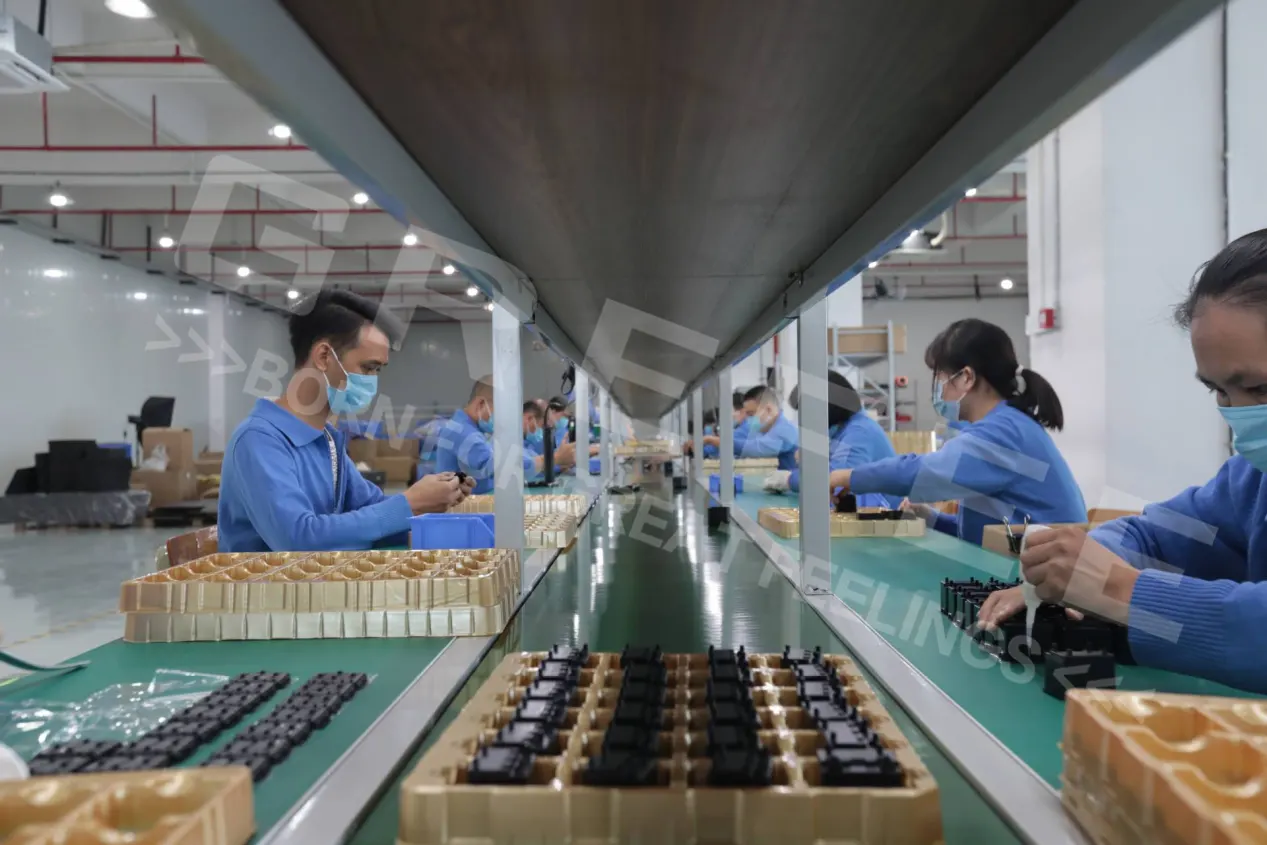

Standardized Assembly and Full-Process Quality Control​

GREFEE has a mature product assembly system, with clear specifications and standards for component counting, matching, and assembly. It focuses on the precise connection and stability of components, and at the same time integrates a real-time quality inspection mechanism to ensure that the assembly meets the requirements. Whether it is small-batch customized products or large-volume standardized products, the standardized assembly can achieve dual guarantees of performance and appearance.

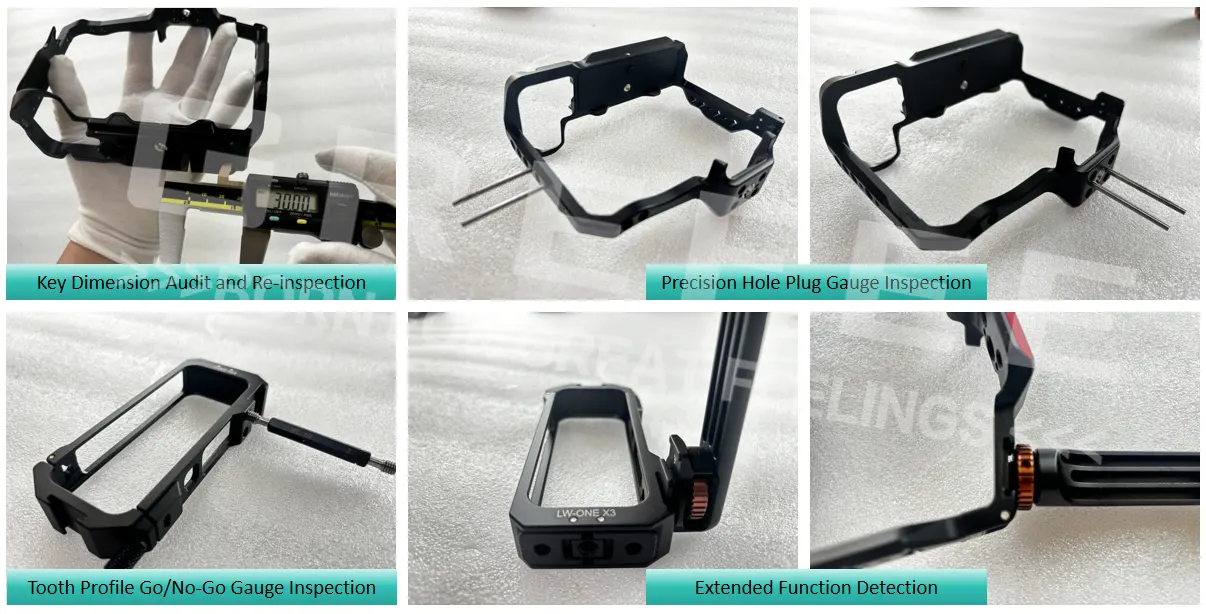

Comprehensive Product Testing and Test Assistance Capabilities

In the quality verification link, GREFEE’s quality management team not only undertakes internal quality control but also assists customers in conducting product performance testing and trials. Relying on professional technology and rich experience, the team formulates personalized plans according to product characteristics to verify whether the performance meets customer requirements and industry standards, effectively ensuring that every end-user can obtain satisfactory products

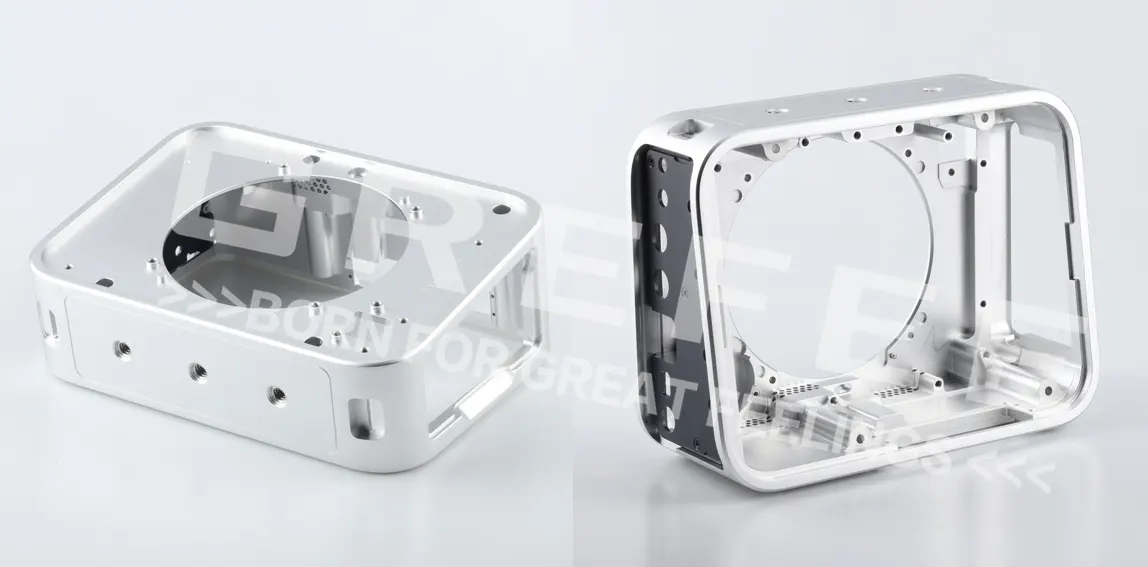

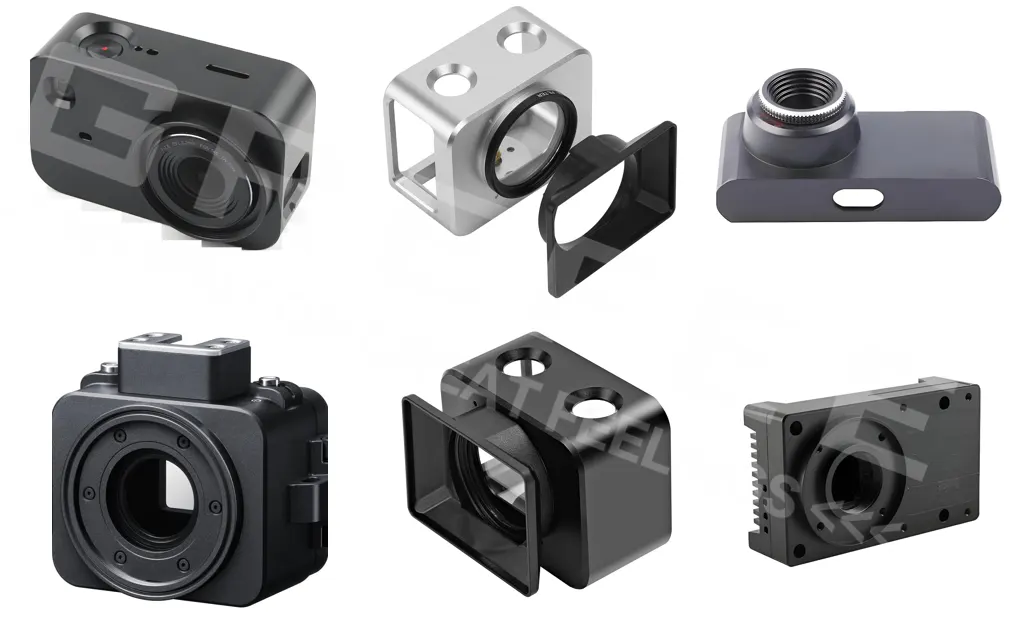

Camera Housing

As a key component for protecting internal components and shaping the product appearance, the machining precision and structural stability of the camera housing are crucial. When machining the main body of the camera housing, GREFEE formulates detailed machining plans according to the characteristics of cameras in different fields

Deformation Treatment：Since the interior of the main housing body has many hollowed-out structures, to avoid deformation during the machining process, the material is subject to strict stress relief treatment before machining to reduce the impact of residual stress inside the material on machining precision

Machining Precision：For some complex features on the main housing body, such as key holes and interface slots, 5-axis equipments are used to ensure the machining precision of each feature. The 5-axis machining of camera housings has significant advantages, which fully meet the requirements of camera housings for precision and stability, and provide a solid guarantee for the overall performance of the camera.

Complete multi-sided complex machining with one clamping, reducing the error accumulation caused by multiple clampings and improving the overall precision.

Break through space limitations, capable of machining complex structures such as undercuts and inclined surfaces that cannot be handled by 3-axis machining, especially suitable for complex curved surfaces and special-shaped structures of the housing.

Reduce the reliance on special fixtures, lower production costs, not only shorten the machining process and improve efficiency but also avoid deformation caused by multiple clampings and ensure the stability of thin-walled parts.

Higher machining surface quality, reducing subsequent processing procedures. For the main body of the camera housing machined by 5-axis machining, the dimensional tolerance is controlled within ±0.01mm, and the flatness error does not exceed 0.005mm.

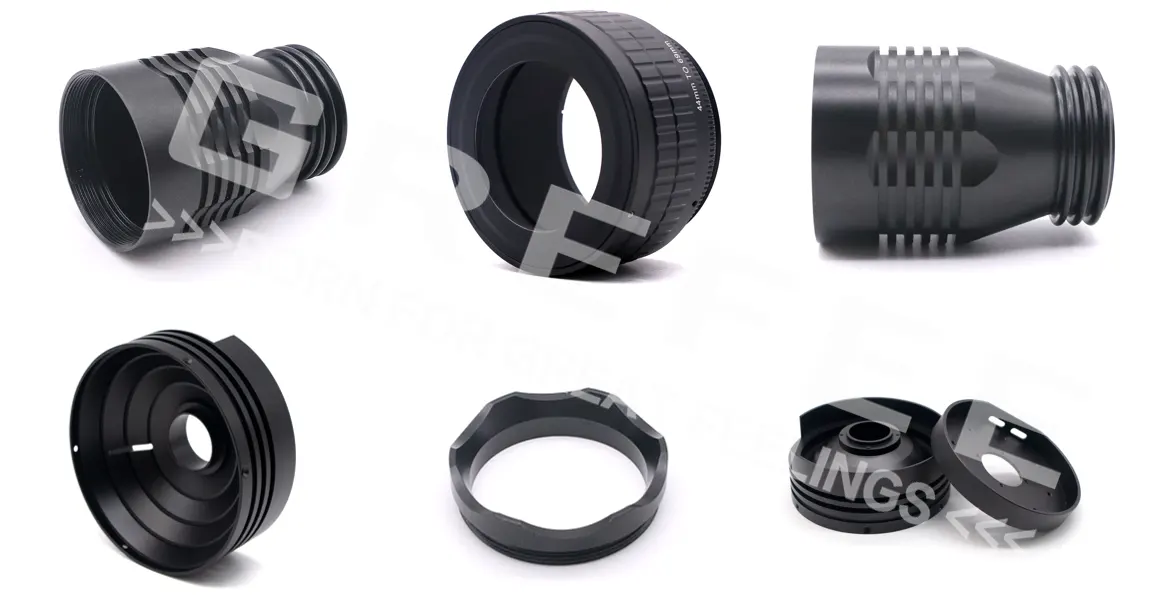

CNC Machining of Lens Barrels – Fixture Design

For different types of camera components, GREFEE designs special fixtures. Taking lens barrel components and Japan’s Tsugami equipments as examples, they have obvious advantages in machining the lens mount components of cameras:

High precision: The equipment can achieve a tolerance control of ±0.005mm, ensuring stable focusing.

High integration: Since the grooves are evenly distributed on the surface, a 4th-axis rotating axis is required during machining. Therefore, a 4th-axis rotary table is equipped on the machining center table, which can complete multi-process machining such as groove milling, chamfering, and drilling in one clamping, reducing the process flow time and improving the mass production efficiency.

Flexible clamping: Adaptive clamping is realized through precise air pressure control, which can not only ensure the clamping stability of thin-walled lens barrels but also avoid component deformation caused by rigid clamping, especially suitable for components made of easily deformable materials such as aluminum alloys.

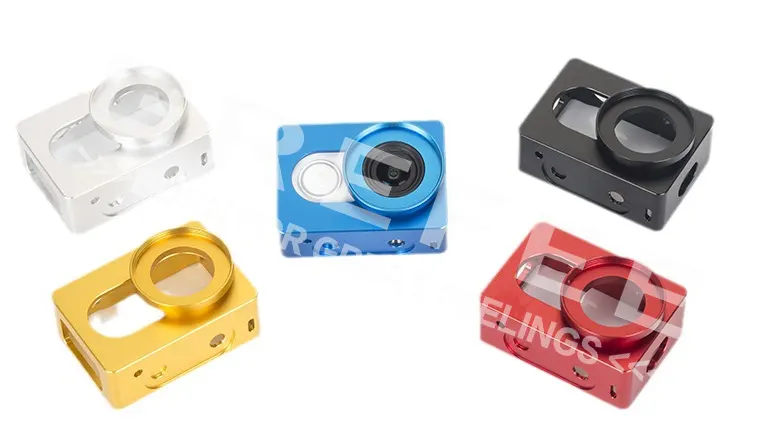

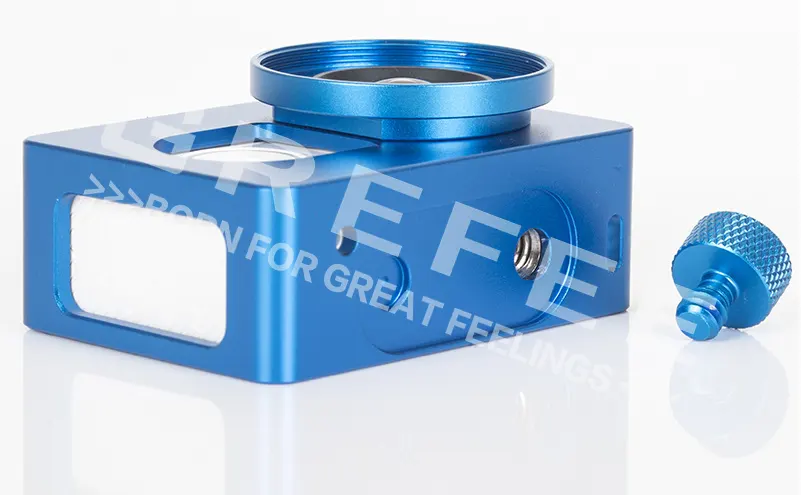

Extended Components – GOPRO Protective Case

Among extended components, GOPRO protective cases also belong to components with multiple hollowed-out structures (prone to deformation) that require multi-sided machining. For such components, more details need to be paid attention to during the machining process. For example, stress relief treatment should be performed on the material before machining, and excessive cutting force should be avoided during machining to prevent workpiece deformation. Factors such as tool speed, cutting speed, and cutting feed rate during machining need to be carefully considered.

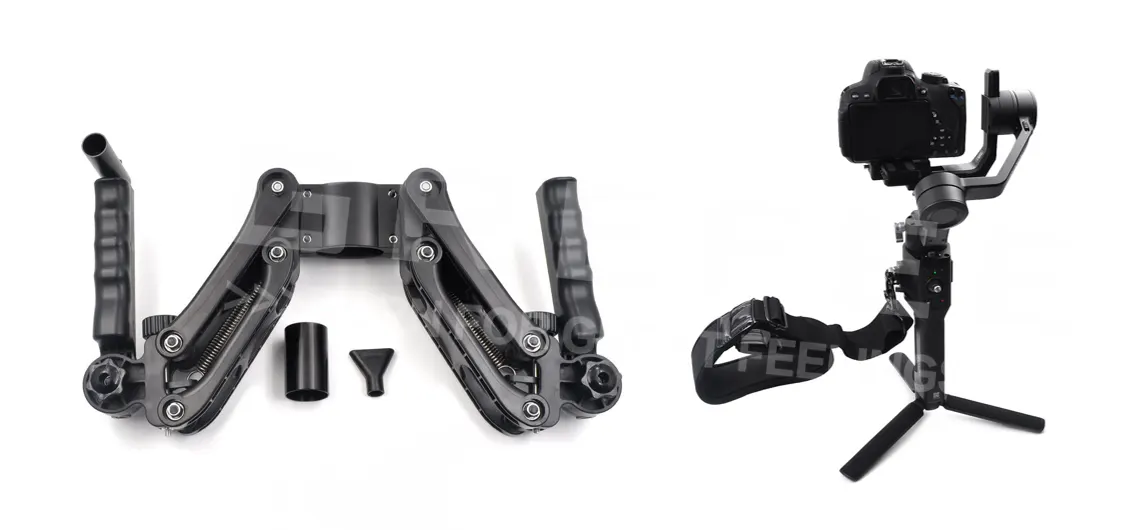

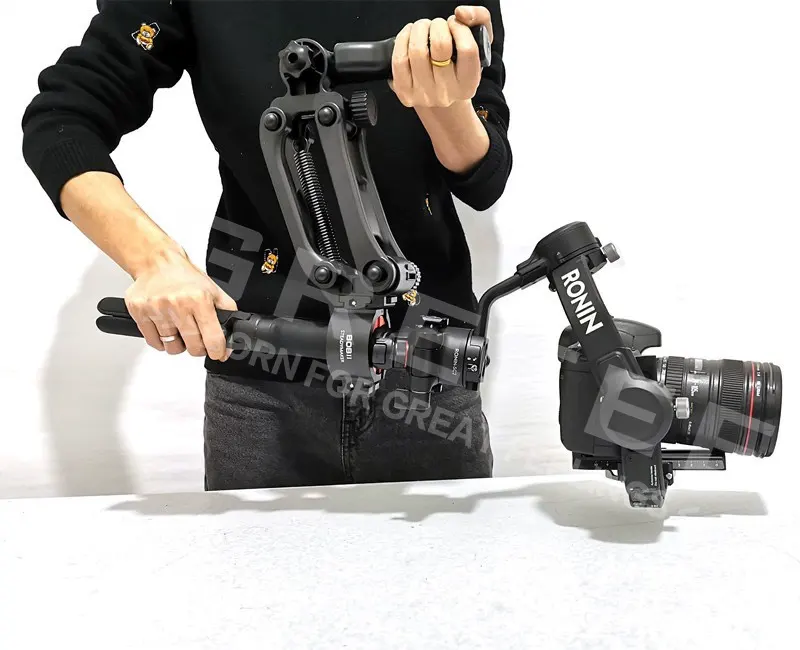

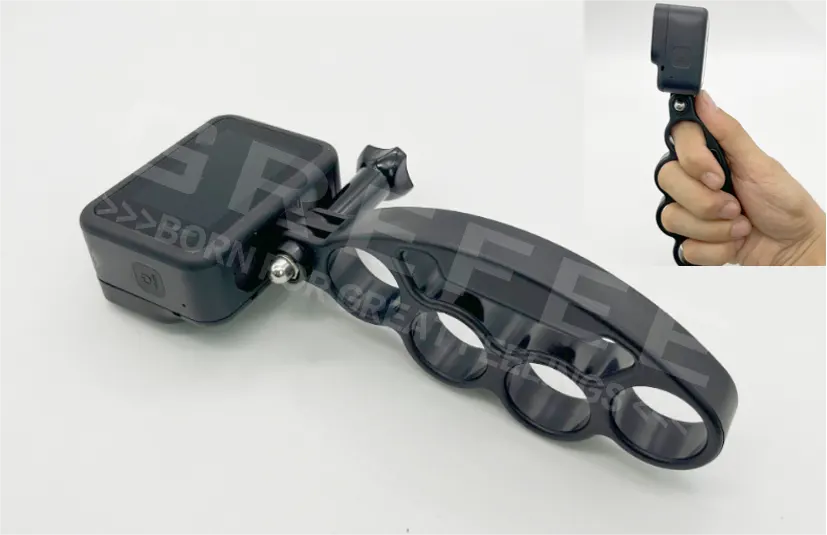

Extended Components – Handheld Parts

For handheld parts, the most important thing is to ensure the hand feel of the parts. At the same time, they need to have wear resistance, corrosion resistance, aesthetics, and a delicate grip feeling. They also need to ensure strength while reducing weight to facilitate long-time handheld shooting. Special attention should be paid to the pre-treatment and post-treatment of the parts. After the machining of the parts is completed, comprehensive cleaning is carried out to provide higher guarantee for the post-treatment of the parts. Therefore, more details need to be paid attention to during the machining process to ensure the refinement of the part surface.

Pre-treatment：The parts should be fully polished, especially the 4 finger notches and the outer corners, which need to be repeatedly polished with emery cloth to eliminate steps and level differences, laying a good foundation for subsequent treatment.

Surface Treatment：Special textures or coatings can be applied on the surface to increase the friction and comfort of holding. For example, through anodization, a uniform luster and texture are formed on the part surface. The oxide film not only improves the surface texture and effectively resists friction and wear but also blocks the chemical reaction caused by sweat, enhancing corrosion resistance, so that the parts can achieve a better balance between practicality and aesthetics.

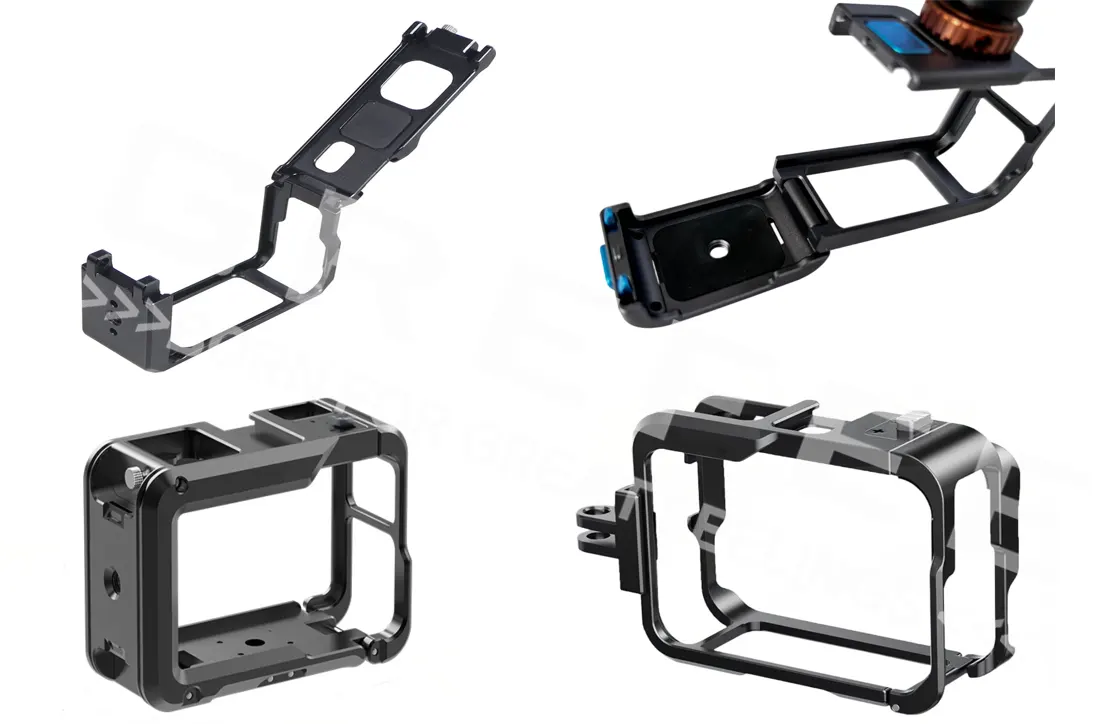

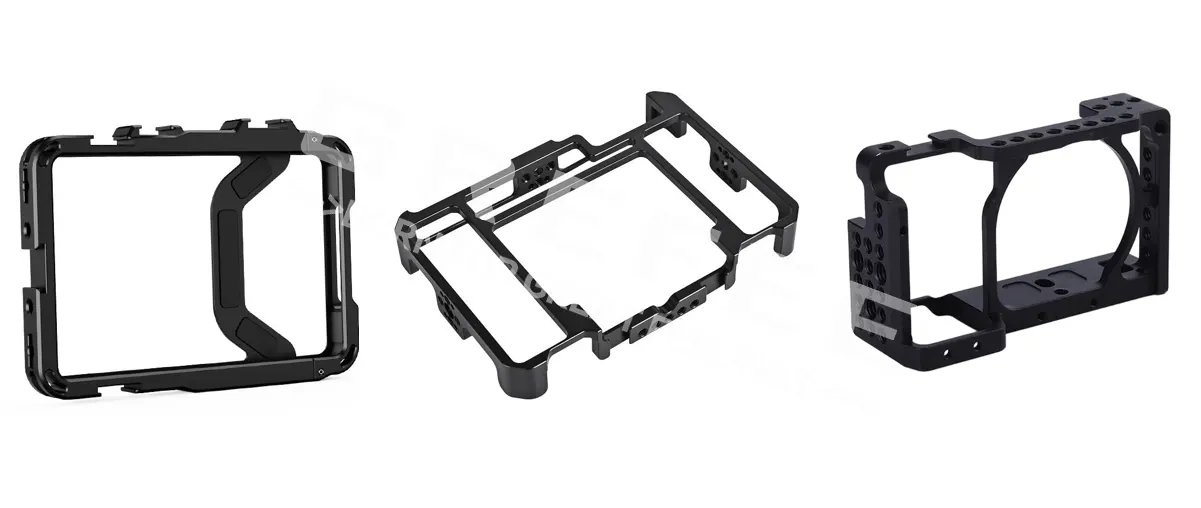

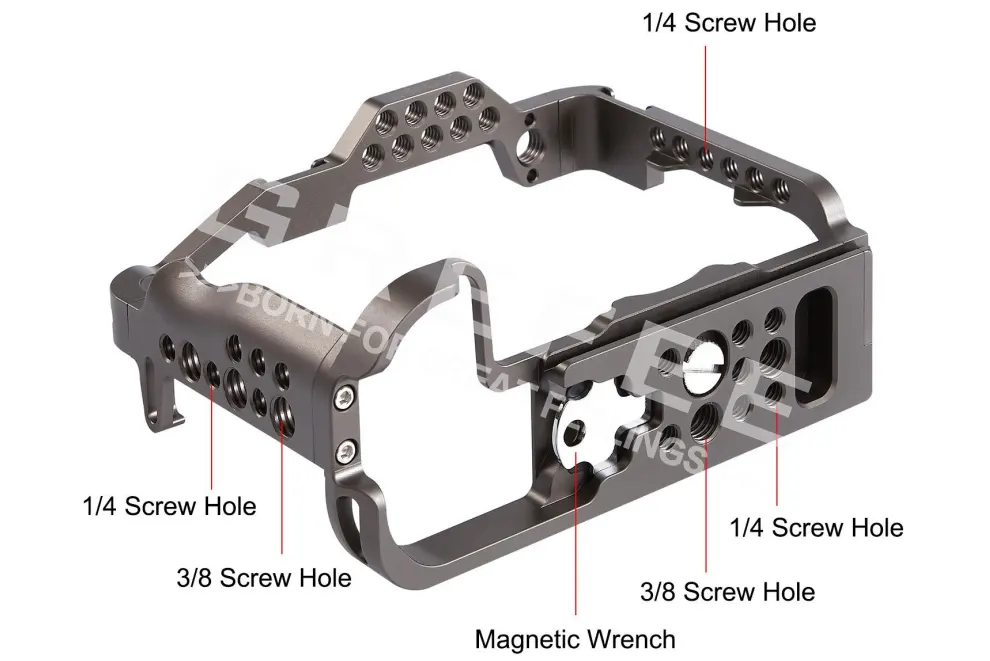

Extended Components – Camera Expansion Housing

As the first line of defense for camera equipment, the expansion housing mainly has protective and expansion functions. It can not only protect the internal camera but also be suitable for multi-environment shooting. Therefore, the expansion housing needs to have impact resistance, ensure the fit with the camera body, and at the same time have certain expandable functions, such as external connection functions, to increase the safety and practicality of the components.

Compared with the small-sized protective case of GOPRO, the design goal of the protective housing for large cameras is to achieve extreme lightweight. The honeycomb-shaped threaded hole structure design can not only meet the weight reduction needs but also provide more expansion functions. Combining high-hardness lightweight materials with various surface treatments, the housing can achieve both portability and holding comfort, meeting the needs of long-time handheld shooting. GREFEE has rich experience in housing manufacturing, which can help you optimize the housing structure and customize a reliable and lightweight handheld equipment machining plan according to your needs.

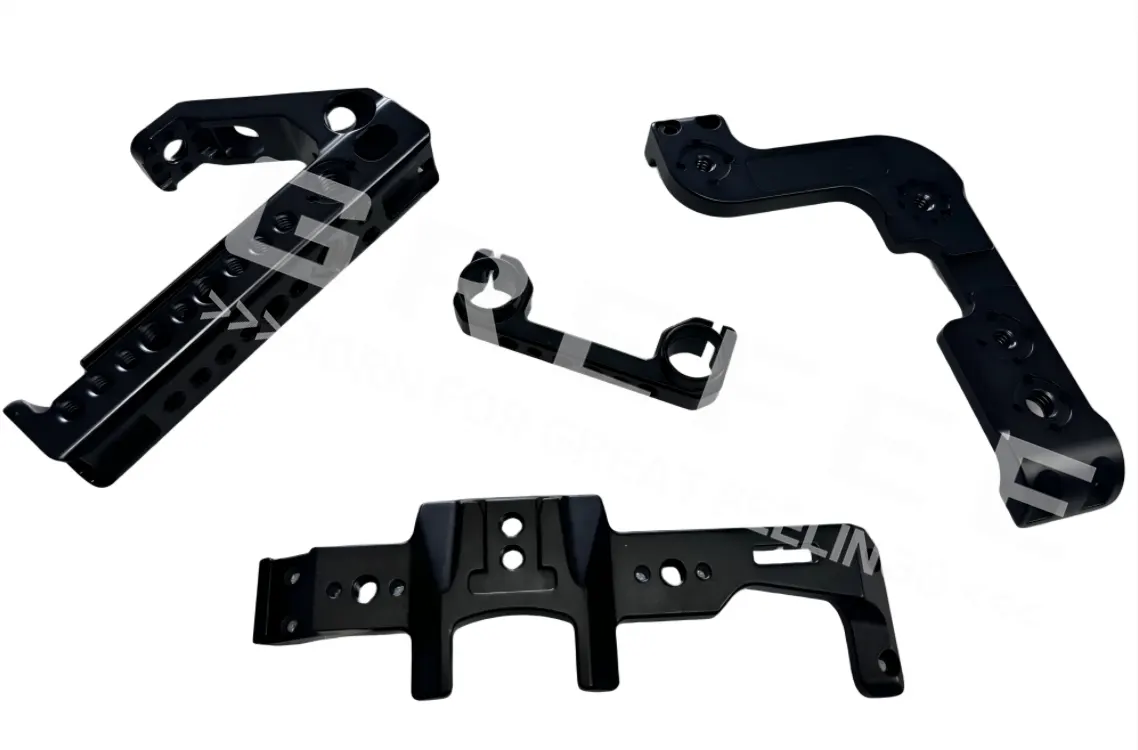

Extended Components – Accessory Parts

For non-critical expandable camera accessories, such as camera bases, brackets, and fixed shafts, GREFEE can use Taichung Group equipments to achieve rapid production. Samples can be produced and fully inspected within 48 hours at the fastest, and the dimensional data of the parts can be verified, thus realizing rapid and accurate mass production.

Common Processing Technology – Oxidation

After oxidation treatment, the housing not only has excellent weather resistance but also presents a fashionable appearance, enabling the part surface to obtain better gloss, color uniformity, and texture, and improving the overall aesthetics of the camera. The oxide film not only has good corrosion resistance but also can effectively resist the erosion of rainwater, moisture, and salt in seawater outdoors.

Oxidation not only endows the product with a richer and more diverse color selection but also can accurately match the appearance requirements in different scenarios. The diversified color scheme can attract the user’s attention at the first glance when they come into contact with the product, effectively improving the appearance appeal. At the same time, the optimized oxidation process can make the color more uniform and the saturation more durable, avoiding problems such as fading and paint peeling due to long-term use. It not only prolongs the aesthetic cycle of the product appearance but also indirectly enhances the user’s trust in product quality, achieving dual optimization from visual experience to use experience.

With advanced equipments, exquisite machining technology, reasonable material selection, diverse surface treatments, and a strict testing system throughout the entire process, GREFEE can provide full-category and full-scenario high-quality machining services for photography series camera components. Whether it is outdoor cameras, handheld cameras, or underwater waterproof camera components for extreme environments, we can meet the strict requirements of customers for precision control, performance stability, and appearance texture.

Behind this series of strong capabilities, it not only demonstrates GREFEE’s strong strength in hardware investment but also provides a solid guarantee for the efficient production and quality control of photographic components. Through the production mode combining standardization and customization, it ensures that each component can match the extreme pursuit of precision and stability of photographic equipment and meet the strict standards of the market for professional photographic equipment.

GREFEE is committed to providing customers with a one-stop solution from pre-product design optimization and prototype sampling to mass production. With full-chain services, it helps customers promote their projects efficiently and smoothly, achieve cost reduction and efficiency improvement, create core value for customers, and work together to develop in the field of photographic equipment.
